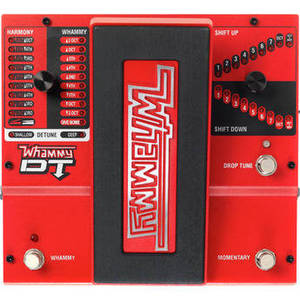

Whammy DT Pitch Shifting Effects Pedal

Whammy DT Pitch Shifting Effects Pedal
From DigiTech
Availability: Item is currently available.
See more in Musical Instruments


Product Description
The Whammy DT Pitch Shifting Effects Pedal by DigiTech builds upon the legendary Whammy pedal by adding more effects, drop and raised tuning, a momentary switch for hammer-on/pull-off effects and switchable True and DSP bypass modes. Simply put, the Whammy takes your guitar sound and shifts the pitch up or down using special algorithms and is then controlled with the onboard expression pedal creating new and exciting sounds.

The Whammy DT includes classic whammy voices plus three different effects; Whammy, Harmony and Detune. It also provides drop and raised tuning in half steps or over an entire octave in just one setting. Quickly stomp on the momentary switch and create cool, hammer-on/pull-off effects or hold it down for quick chord shifts and surprising note changes for that searing solo or gritty bridge.
Input Unbalanced 1/4" TS
Maximum Input Level +5 dBu
Input Impedance 1 Mohm
MIDI 5-Pin din
Footswitch Input 1/4" TRS for use with optional FS3X foot pedal
Output 1/4" Unbalanced TS
Maximum Output Level +10 dBu
Output Impedance 1 kohm
Sample Rate 44.1 kHz
Frequency Response 20 Hz to 20 kHz
Signal to Noise Ratio > -105 dB (A weighted); ref = max level, 22 kHz bandwidth
THD 0.004% @ 1 kHz; ref = 1 dBu w/ unity gain
A/D Conversion 24 bit
D/A Conversion 24 bit
Pitch Bend Range +2/-3 octaves
Detune Range -4 to -30 cents
Drop Tune Range 1-7 semitones, octave, octave + dry
Power Consumption 2.6 watts < 288 mA at 9 VDC
Power Requirements 9 VDC external adapter
Power Adapter PS0913DC-01 (US, JA, EU)
PS0913DC-02 (AU, UK)
Dimensions (WxDxH) 8.2 x 7.73 x 2.36" (20.82 x 19.63 x 5.99 cm)
Weight 3.5 lb
