NS-PA40 5.1-Channel Speaker System (Black)
 |
From Yamaha
Availability: Item is currently available.
See more in Electronics
See more in Home Theater
Product Description

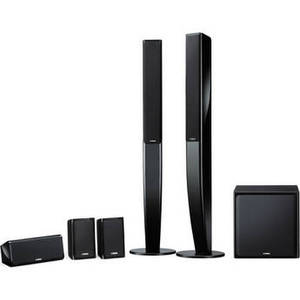

The black Yamaha NS-PA40 5.1-Channel Speaker System includes dual 2-way front speakers and dual full-range bass-reflex surround speakers, as well as a full-range acoustic suspension center speaker and an Advanced YST II subwoofer with a Linear Port that improves bass response and minimizes noise. The front, surround and center speakers all support 100W of maximum input power and 30W of nominal input power. The subwoofer features a 50W output power rating and a 100W dynamic power rating. The 5.1-channel speaker system's other features include wall mounting keyholes for the surround and center speakers, HD audio compatibility, a glossy black finish to match your flat-panel HDTV and a neat-wiring system that hides the speaker cable inside the front speaker cabinets and round floor stands.
| Channels | 5.1 |
| Front Speakers | Type: 2-way, 3-speaker bass-reflex (non-magnetic shielding type) Woofers: 2.75" (7 cm) cone x 2 Tweeter: 1" (2.5 cm) balanced dome x 1 Nominal Input Power: 30 W Maximum Input Power: 100 W Sensitivity: 85 dB/2.83 V/1 m Frequency Response (-10 dB): 67 Hz - 30 kHz Frequency Response (-30 dB): 67 Hz - 100 kHz Impedance: 6 ohms |
| Surround Back Speakers | Type: Full-range bass-reflex (non-magnetic shielding type) Driver: 2.75" (7 cm) full-range cone Nominal Input Power: 30 W Maximum Input Power: 100 W Sensitivity: 83 dB/2.83 V/1 m Frequency Response (-10 dB): 50 Hz - 25 kHz Frequency Response (-30 dB): 50 Hz - 45 kHz Impedance: 6 ohms |
| Center Speaker | Type: Full-range acoustic suspension (non-magnetic shielding type) Driver: 2.75" (7 cm) full-range cone Nominal Input Power: 30 W Maximum Input Power: 100 W Sensitivity: 84 dB/2.83 V/1 m Frequency Response (-10 dB): 70 Hz - 25 kHz Frequency Response (-30 dB): 70 Hz - 45 kHz Impedance: 6 ohms |
| Subwoofer | Type: Advanced YST II Subwoofer with Linear Port (non-magnetic shielding type) Driver: 6.5" (16 cm) cone woofer Output Power: 50 W (5 ohms, 100 Hz, 10% THD) Dynamic Power: 100 W (5 ohms) Input Impedance: 12 kohms Frequency Response: 30 - 200 Hz Input Sensitivity: 50 mV (50 Hz, 50 W / 5 ohms) Power Supply: AC 110 - 120 V / 220 - 240 V (50 / 60 Hz) |
| Dimensions (WxHxD) | Front Speakers: 3.5 x 38.7 x 3.5" (90 x 982 x 90 mm) without base Front Speakers: 9.1 x 39.4 x 9.1" (230 x 1000 x 230 mm) with base Surround Speakers: 4.4 x 6.9 x 4.6" (112 x 176 x 116 mm) Center Speaker: 10.9 x 4.4 x 4.6" (276 x 111 x 118 mm) Subwoofer: 11.4 x 11.5 x 12.9" (290 x 292 x 327 mm) |
| Weight | Front Speakers: 6.2 lb (2.8 kg) with base Surround Speakers: 1.3 lb (0.59 kg) Center Speaker: 1.61 lb (0.73 kg) Subwoofer: 17.6 lb (8 kg) |
