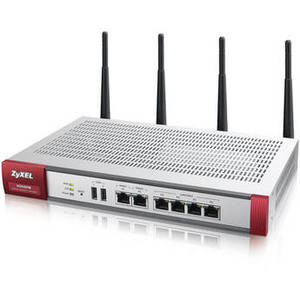

USG60W Performance Series Unified Security Gateway
![]() |
From ZyXEL
Availability: Item is currently available.
See more in Electronics
See more in Accessories
See more in Computers
Product Description
The USG60W Performance Series Unified Security Gateway from ZyXEL is an all-in-one Next Generation Firewall (NGFW) designed to fulfill the Bring Your Own Device (BYOD) demands, application regulation, and budget control in small business environments. Built with single-radio and dual-radio wireless access points, the USG60W is suitable for retail and office environments. The built-in WLAN controller offers instant wireless hotspot capability and future WLAN scalability. The all-in-one design integrates everything that small businesses need, thus delivering easy, centralized management and low Total Cost of Ownership (TCO). Application Intelligence technology enables businesses to prioritizeproductive applications, throttle acceptable ones, and block unproductive applications to boost productivity and prevent bandwidth abuse. Content-filtering enables businesses to deny access to websites that are malicious or not business-related. Enabling antivirus, anti-spam, and intrusion prevention, business networks gain deep, extensive protection against all types of malware threats. Designed for businesses with limited IT resources, the USG helps you connect, protect, and manage with reduced complexity. It features a robust fanless design to prevent dirt and dust from entering operating environments that can cause potentially catastrophic failures. The dual-WAN and mobile broadband provides high Internet uptime with dual-WAN and mobile broadband support. The integrated WLAN controller supports CAPWAP, and enables centralized authentication and access management of multiple APs in the network.
Hardware | |
Ports | 4 x LAN/DMZ (RJ-45) 2 x WAN (RJ-45) 2 x USB 1 x Console (DB-9) |
AP Controller Version | 1.0 |
Managed AP Number | Default: 2 Maximum: 10 |
Power Input | 12 VDC, 3.0 A maximum |
Power Consumption | 28.0 W maximum |
Certifications | EMC: FCC Part 15 (Class B), CE EMC (Class B), C-Tick (Class B), and BSMI Safety: LVD (EN60950-1), BSMI |
MTBF | 497,644 hours |
Wireless Specifications | |
Standard Compliance | 802.11 a/b/g/n |
Wireless Frequency | Concurrent 2.4 and 5 GHz |
Radio | 2 |
SSID | 16 |
Transmit Power | US (FCC) 2.4 GHz: 24.3 dBm, 2 x antennas EU (ETSI) 2.4 GHz: 17 dBm, 2 x antennas |
Number of Antennas | 2.4 GHz: 2T2R MIMO 5 GHz: 2T2R MIMO (detachable, SMA-R) |
Antenna Gain | 3 dBi |
Data Rate | 802.11 b/g: 1, 2, 5.5, 6, 9, 11, 12, 18, 24, 36, 48, and 54 Mb/s 802.11a: 6, 9, 12, 18, 24, 36, 48, and 54 Mb/s 802.11n: Up to 300 Mb/s in MCS15 (40 MHz; GI = 400 ns) |
Receive Sensitivity | 2.4 GHz: 11 Mb/s ≤ -87 dBm 54 Mb/s ≤ -77 dBm HT20, MCS15 ≤ -71 dBm HT40, MCS15 ≤ -68 dBm 5 GHz: 54 Mb/s ≤ -75 dBm HT20, MCS15 ≤ -71 dBm HT40, MCS15 ≤ -69 dBm |
System Capacity and Performance | |
SPI Firewall Throughput | 1000 Mb/s |
VPN Throughput | 180 Mb/s |
IDP Throughput | 120 Mb/s |
AV Throughput | 90 Mb/s |
UTM Throughput (AV and IDP) | 90 Mb/s |
Unlimited User Licenses | Yes |
TCP Concurrent Sessions | 40,000 (maximum) |
Concurrent IPsec VPN Tunnels | 20 |
New TCP Session Rate | 3,000 |
Concurrent SSL VPN Users | 12 |
SSL VPN User Number | 2 |
Customizable Zones | Yes |
IPv6 Support | Yes |
VLAN Interface | 16 |
Software | |
Firewall | ICSA-certified firewall (certification in progress) Routing and transparent (bridge) modes Stateful packet inspection User-aware policy enforcement SIP/H.323 NAT traversal ALG support for customized ports Protocol anomaly detection and protection Traffic anomaly detection and protection Flooding detection and protection DoS/DDoS protection |
IPv6 Support | IPv6 Ready gold logo (certification in progress) Dual stack IPv4 tunneling (6rd and 6 to 4 transition tunnel) IPv6 addressing DNS DHCPv6 Bridge VLAN PPPoE Static routing Policy routing Session control Firewall and ADP IPSec VPN Intrusion Detection and Prevention (IDP) Application intelligence and optimization Content filtering Anti-virus, anti-malware Anti-spam |
IPsec VPN | ICSA-certified IPSec VPN (certification in progress) Encryption: AES (256-bit), 3DES and DES Authentication: SHA-2 (512-bit), SHA-1 and MD5 Key management: manual key, IKEv1 and IKEv2 with EAP Perfect forward secrecy (DH groups) support 1, 2, 5 IPSec NAT traversal Dead peer detection and relay detection PKI (X.509) certificate support VPN concentrator Simple wizard support VPN auto-reconnection VPN High Availability (HA): Load-balancing and failover L2TP over IPSec GRE and GRE over IPSec NAT over IPSec ZyXEL VPN client provisioning |
SSL VPN Throughput | Supports Windows and Mac OS X Supports full tunnel mode Supports 2-step authentication Customizable user portal |
Intrusion Detection and Prevention | Routing and transparent (bridge) mode Signature-based and behavior-based scanning Automatic signature updates Customizable protection profile Customized signatures supported |
Unified Security Policy | Unified policy management interface Supported UTM features: anti-virus, antispam, IDP, content filtering, application intelligence, firewall (ACL) 3-Tier Configuration: Object-based, profile based, policy-based Policy Criteria: Zone, source, and destination IP address, user, time |
WLAN Management | ZyXEL AP Controller (APC) 1.0 compliant Client RSSI threshold to prevent sticky clients IEEE 802.1x authentication Captive portal Web authentication Customizable captive portal page RADIUS authentication Wi-Fi Multimedia (WMM) wireless QoS CAPWAP discovery protocol |
Mobile Broadband | WAN connection failover via 3G and 4G* USB modems Auto fallback when primary WAN recovers |
Networking | Routing mode, bridge mode, and hybrid mode Ethernet and PPPoE NAT and PAT VLAN tagging (802.1Q) Virtual interface (alias interface) Policy-based routing (user-aware) Policy-based NAT (SNAT) Dynamic routing (RIPv1/v2 and OSPF) DHCP client/server/relay Dynamic DNS support WLAN trunk for more than 2 ports Per host session limit Guaranteed bandwidth Maximum bandwidth Priority-bandwidth utilization Bandwidth limit per user Bandwidth limit per IP |
Authentication | Local user database Microsoft Windows Active Directory integration External LDAP/RADIUS user database XAUTH, IKEv2 with EAP VPN authentication Web-based authentication Forced user authentication (transparent authentication) IP-MAC address binding SSO (Single Sign-On) support |
System Management | Role-based administration Multiple administrator logins Multi-lingual Web GUI (HTTPS and HTTP) Command line interface (console, Web console, SSH, and TELNET) SNMP v2c (MIB-II) System configuration rollback Firmware upgrade via FTP, FTP-TLS, and Web GUI Dual firmware images |
Logging and Monitoring | Comprehensive local logging Syslog (to up to 4 servers) Email alerts (to up to 2 servers) Real-time traffic monitoring Built-in daily report Advanced reporting with Vantage Report |
VPN, Management and Reporting | Managed APs: Add 8 APs SecuExtender SSL VPN Client: Add 5 clients IPSec VPN Client: For 1/5/10/50 clients Vantage Report: For 1/5/25/100 devices |
Antivirus | Supports Kaspersky anti-virus signatures Identifies and blocks over 650,000 viruses Stream-based anti-virus engine HTTP, FTP, SMTP, POP3 and IMAP4 protocol support Automatic signature updates No file size limitation |
Anti-Spam | Transparent mail interception via SMTP and POP3 protocols Configurable POP3 and SMTP ports Sender-based IP reputation filter Recurrent Pattern Detection (RPD) technology Zero-hour virus outbreak protection X-Header support Blacklist and whitelist support Supports DNSBL checking Spam tag support Statistics report |
Content Filtering | Social media filtering Malicious Website filtering URL blocking and keyword blocking Blacklist and whitelist support Blocks java applets, cookies and ActiveX Dynamic, cloud-based URL filtering database Unlimited user license support Customizable warning messages and redirection URL |
License Information | |
Antivirus | Kaspersky: 1-year |
Application Intelligence and IDP | 1-year |
Content Filtering | 1-year |
Anti-Spam | 1-year |
General | |
Compatibility | Access Point NWA5120 Series (Unified Access Point) NWA5121-NI NWA5121-N NWA5123-NI NWA5000 Series (Managed Access Point) NWA5160N NWA5560-N NWA5550-N NWA3000-N Series (Unified Pro Access Point) NWA3160-N NWA3560-N NWA3550-N Functions central management, auto provisioning, and local bridge data forwarding |
Operating Temperature | 32 to 104°F (0 to 40°C) |
Storage Temperature | -22 to +158°F (-30 to +70°C) |
Operating Humidity | 10 to 90% (non-condensing) |
Storage Humidity | 10 to 90% (non-condensing) |
Dimensions (W x H x D) | 10.71 x 1.42 x 6.73" (272.00 x 36.00 x 171.00 mm) |
Weight | 3.23 lb (1.46 kg) |
