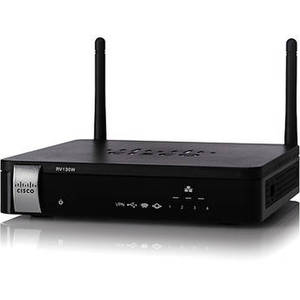

RV130W Wireless-N Multifunction VPN Router
 |
From Cisco
Availability: Item is currently available.
See more in Electronics
See more in Accessories
See more in Computers
Product Description
The Buffalo RV130W Wireless-N Multifunction VPN Router can be used as a standalone wireless router, access point, or repeater so it can remain flexible as your needs evolve. It supports 802.11n technology and features four gigabit LAN ports as well as one gigabit WAN port. To help connected network applications run their best, this router features intelligent quality of service (QoS) that prioritizes the network traffic to offer more bandwidth for programs requiring faster data speeds such as voice and video. When connecting to the network wirelessly, two fixed antennas offer enhanced wireless reception with a 2 dBi antenna gain. To help you connect remotely, the router features integrated enterprise-class encryption and authentication. It also supports IPsec and Point-to-Point Tunneling Protocol (PPTP) VPN client connections as well as IPsec gateway-to-gateway VPN tunnels. Furthermore, it has a USB port to enable failover connectivity with an optional 3G and 4G modem, which is also suitable for remote regions or temporary connectivity.
| Standard | IEEE 802.11n 802.11g 802.11b 802.3 802.3u 802.1D 802.1p 802.1w (Rapid Spanning Tree) 802.1X (security authentication) 802.1Q (VLAN) 802.11i (Wi-Fi Protected Access [WPA2] security) 802.11e (wireless QoS) IPv4 (RFC 791) IPv6 (RFC 2460) Routing Information Protocol (RIP) v1 (RFC 1058) RIP v2 (RFC 1723) |
| Ports | LAN WAN USB |
| Switch | Power button (on/off) |
| Button | Reset |
| Cabling Type | Category 5e or better |
| LEDs | Power, VPN, USB, WAN, Wireless, LAN (ports 1-4) |
| Operating System | Linux |
| Network | |
| Network Protocols | Dynamic Host Configuration Protocol (DHCP) server Point-to-Point Protocol over Ethernet (PPPoE) Point-to-Point Tunneling Protocol (PPTP) Layer 2 Tunneling Protocol (L2TP) DNS proxy DHCP relay agent IGMP proxy and multicast forwarding Rapid Spanning Tree Protocol (RSTP) Dynamic Domain Name System (TZO, DynDNS, 3322.org, NOIP) Network Address Translation (NAT), Port Address Translation (PAT) One-to-One NAT Port management Port mirroring Software configurable DMZ to any LAN IP address Session Initiation Protocol (SIP) Application Layer Gateways (ALG) |
| LAN | 4 x 10/100/1000 Mbps gigabit LAN ports with managed switch |
| WAN | 1 x 10/100/1000 Mbps gigabit WAN port |
| WLAN | Built-in high-speed 802.11n wireless access point |
| Routing Protocols | Static routing Dynamic routing RIP v1 and v2 Inter-VLAN routing |
| Network Address Translation (NAT) | Port Address Translation (PAT) Network Address Port Translation (NAPT) protocol |
| VLAN Support | Port-based and 802.1Q tag-based VLANs |
| Number of VLANs | 5 active VLANs (3-4096 range) |
| IPv6 | Dual-stack IPv4 and IPv6 6to4 tunneling Stateless address auto-configuration DHCPv6 Server for IPv6 Clients on LAN DHCP v6 client for WAN connectivity Internet Control Message Protocol (ICMP) v6 Static IPv6 Routing Dynamic IPv6 Routing with RIPng |
| Network Edge (DMZ) | Software configurable to any LAN IP address |
| Layer 2 Services | 802.1Q-based VLANs 5 active VLANs |
| Security | |
| Firewall | Stateful packet inspection (SPI) firewall, port forwarding and triggering, denial-of-service (DoS) prevention, software-based DMZ DoS Attacks Prevented:
|
| Access Control | IP access control lists; MAC-based wireless access control |
| Content Filtering | Static URL blocking or keyword blocking |
| Secure Management | HTTPS, username/password complexity |
| WPS (Wi-Fi Protected Setup) | Yes |
| User Privileges | 2 levels of access: admin and guest |
| VPN | |
| IPsec VPN | 10 gateway-to-gateway IPSec tunnels 10 client-to-gateway IPsec tunnels using The GreenBow and ShrewSoft VPN client |
| PPTP VPN | 10 PPTP tunnels for remote client access |
| Encryption | Triple Data Encryption Standard (3DES) |
| Authentication | MD5/SHA1 |
| VPN Pass-Through | IPsec/PPTP/Layer 2 Tunneling Protocol (L2TP) pass-through |
| Quality of Service (QoS) | |
| QoS | 802.1p port-based priority on LAN port, application-based priority on WAN port 3 queues Differentiated Services Code Point support (DSCP) Class of Service (CoS) Bandwidth Management for service prioritization |
| Jumbo Frame | Supports Jumbo Frame on Gigabit ports - at least 1536 B |
| Performance | |
| NAT Throughput | 800 Mbps |
| Concurrent Sessions | 12,000 |
| IPsec VPN Throughput (3DES / AES) | 50 Mbps |
| Configuration | |
| Web User Interface | Simple, browser-based configuration (HTTP/HTTPS) |
| Management | |
| Management Protocols | Web browser, Simple Network Management Protocol (SNMP) v3, Bonjour, Universal Plug and Play (UPnP) |
| Event Logging | Local, syslog, email alerts |
| Network Diagnostics | Ping, Traceroute, and DNS Lookup |
| Upgradability | Firmware upgradable through web browser, imported/exported configuration file |
| System Time | Supports NTP, Day Light Savings, Manual entry |
| Languages | GUI supports English, French, Italian, German, and Spanish |
| Wireless | |
| Radio and Modulation Type | 802.11b: direct sequence spread spectrum (DSSS) 802.11g: orthogonal frequency division multiplexing (OFDM) 802.11n: OFDM |
| WLAN | 2.4GHz IEEE 802.11n standard-based access point with 802.11b/g compatibility |
| Operating Channels | 11 North America, 13 most of Europe, auto channels selection |
| Wireless Isolation | Wireless isolation between clients |
| External Antennas | 2 fixed antennas |
| Antenna Gain In dBi | 2 dBi |
| Transmit Power | 802.11b: 16.5 dBm +/- 1.5 dBm 802.11g: 15 dBm +/- 1.5 dBm 802.11n: 12.5 dBm +/- 1.5 dBm |
| Receiver Sensitivity | -87 dBm at 11 Mbps -71 dBm at 54 Mbps -68 dBm at mcs15 HT20 -66 dBm at mcs15 HT40 |
| Radio Frequency | Single-band, works on 2.4 GHz |
| Wireless Domain Service (WDS) | Allows wireless signals to be repeated by up to 4 compatible devices |
| Operating Modes | Multifunction device-wireless router Access point mode with WDS Point-to-Point Bridge mode with WDS Point-Multi Point Bridge mode with WDS Repeater mode with WDS |
| Active WLAN Clients | Support up to 64 concurrent clients in wireless router mode and wireless Access Point mode |
| Multiple SSIDs | Supports multiple Service Set Identifiers (SSIDs), up to 4 separate virtual networks |
| Wireless VLAN Map | Supports SSID to VLAN mapping with wireless client isolation |
| WLAN security | Wired Equivalent Privacy (WEP), WPA, WPA2-PSK, WPA2-ENT, 802.11i |
| Wi-Fi Multimedia (WMM) | WMM WMM power save (WMM-PS) |
| Environmental | |
| Power | 12 V, 2 A |
| Certifications | FCC class B, CE, IC, Wi-Fi |
| Temperature | Operating: 32 to 104°F / 0 to 40°C Storage: -4 to 158°F / -20 to 70°C |
| Humidity | Operating: 10 to 85% non-condensing |
