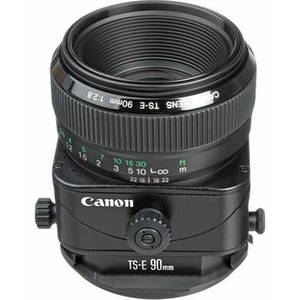

TS-E 90mm f/2.8 Tilt-Shift Lens
![]() |
From Canon
Availability: Item is currently available.
See more in Electronics
See more in Accessories
See more in Camera & Photo
Product Description
Mixing a short telephoto field of view with perspective- and depth of field control, the TS-E 90mm f/2.8 from Canon is a tilt-shift lens well-suited to producing well-corrected imagery with a slightly compressed perspective. Up to +/- 8° of tilt is possible, for focus control, and +/- 11mm of shift, to adjust perspective and composition. The tilt-shift mechanism can be rotated +/- 90° for applying movements in any direction, and a tilt-locking mechanism can be used while shooting for greater stability. The lens also employs a Gaussian-type optical design to maintain image quality throughout the aperture range and a Super Spectra coating has been applied to individual element to reduce flare and ghosting for increased contrast and color accuracy.
Performance | |
Focal Length | 90mm |
Aperture | Maximum: f/2.8 Minimum: f/32 |
Camera Mount Type | Canon EF |
Format Compatibility | 35mm Film / Full-Frame Digital Sensor |
Angle of View | 27° |
Tilt/Shift | Tilt ± 8° Shifts ± 11mm |
Minimum Focus Distance | 1.64' (50 cm) |
Magnification | 0.29x |
Maximum Reproduction Ratio | 1:3.4 |
Optical Design | 6 Elements in 5 Groups |
Diaphragm Blades | 8, Rounded |
Features | |
Autofocus | No |
Physical | |
Filter Thread | Front: 58 mm |
Dimensions (DxL) | Approx. 2.90 x 3.46" (73.6 x 88 mm) |
Weight | 1.24 lb (565 g) |
Warranty Length | Limited 1-Year Warranty |
