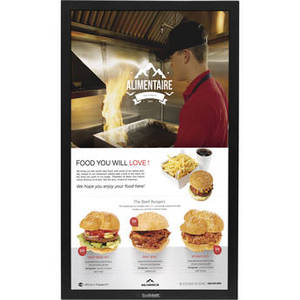

Pro Series DS-4217TSP 42" True-Outdoor All-Weather Touchscreen Portrait Digital Signage (Black)
 |
From SunBriteTV
Availability: Item is currently available.
See more in Electronics
See more in Televisions
Product Description
The black Pro Series DS-4217TSP 42” True-Outdoor Digital Signage from SunBriteTV is an all-weather, portrait-mode interactive touchscreen with a 700 cd/m2 brightness rating, allowing you to view content in direct sunlight. This display is suitable for installations in high-traffic outdoor venues such as resorts, stadiums, college campuses, and restaurant patios.
The DS-4217TSP digital signage features an interactive 3M MicroTouch Dispersive Signal Technology (DST) touchscreen made from chemically strengthened glass for improved scratch resistance. In additional to the anti-glare protective glass, this display uses the high-temperature Enhanced Solar Tolerance (EST) technology that prevents isotropic blackout.
The powder-coated, rust-proof aluminum exterior protects internal components from rain, insects, dust, humidity, and salt air. A built-in heating and cooling system allows the display to operate in temperatures from -40 to 122°F. A weatherproof, detachable 20W speaker bar (available separately) can be top or bottom mounted on the display.
| Screen Size (Diagonal) | 42" (106.7 cm) |
| Panel Type | TFT LED LCD |
| Orientation | Portrait |
| Resolution | 1920 x 1080 |
| Brightness | Blacklight Brightness: 700 cd/m2 Surface Luminance: White |
| Aspect Ratio | 16:9 |
| Contrast Ratio | 1300:1 |
| Viewing Angle | 178° x 178° |
| Frame Rate | Not Specified by the Manufacturer |
| Response Time | 12 ms |
| TV Formats | 1080p, 1080i, 720p, 720i, 480p, 480i |
| Video Input Connectors | 1 x RF Antenna/CATV (ATSC/QAM/NTSC) 2 x HDMI 1 x S-video 1 x RCA Composite 2 x YPbPr Component 1 x VGA 15-pin D-sub |
| Audio Input Connectors | 1 x TRS 1/8" / 3.5 mm (VGA) 1 x stereo RCA (shared between S-video and composite) 2 x stereo RCA (component 1 and 2) |
| Audio Output Connectors | 1 x RCA Digital S/PDIF (fixed) 1 x TRS 1/8" / 3.5 mm headphone jack (variable) |
| Control | RS232 serial, discrete IR control, concealed IR window |
| Power Output (DC) | For Accessories: 5 VDC @ 3.5 A (1.3 mm power jack or USB type-A jack) 12 VDC @ 3 A (2.5 mm power jack) |
| Input Power | 100 to 240 VAC, 50 to 60 Hz, 2.8 A maximum (2.25 A @ 120 VAC) |
| Touch | Touch Interface: USB 2.0 type-B female jack (separately available USB type-A to type-B cable required) |
| Operating Temperature | -40 to 122°F (-40 to 50°C) |
| Non-Operating Temperature | -40 to 140°F (-40 to 60°C) *Requires power to be supplied* |
| Exterior | Powder-coated aluminum |
| VESA Mount Size | 400 x 400 mm |
| Dimensions (W x H x D) | 23.41 x 39.43 x 5.57" (59.5 x 100.2 x 14.1 cm) |
| Weight | 55.0 lb (24.9 kg) |
