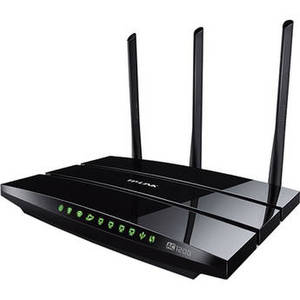

Archer C1200 Dual-Band Wireless-AC1200 Gigabit Router
 |
From TP-Link
Availability: Item is currently available.
See more in Electronics
See more in Accessories
See more in Computers
Product Description
With a wireless data throughput of up to 1200 Mbps, the Archer C1200 Dual-Band Wireless-AC1200 Gigabit Router from TP-Link has the bandwidth to support a variety of tasks from online gaming to streaming of HD multimedia content. Operating on both the 2.4 GHz and 5 GHz frequencies while supporting the 802.11ac Wi-Fi network standard, the Archer C1200 allows nearly any Wi-Fi enabled device to connect to the network. In addition to enhanced wireless coverage, this router comes equipped with four Gigabit LAN and one Gigabit WAN port for reliable, wired Internet connection. Alongside the Gigabit ports is a single USB port designed to support USB compatible storage devices making it simple to exchange files throughout the network. TP-Link also offers their own Tether App available on Android and iOS based mobile devices allowing users to manage and tweak setting right from their mobile device.
| Hardware | |
| Interface | 4 x 10/100/1000 Mbps LAN ports 1 x 10/100/1000 Mbps WAN port 1 x USB 2.0 port |
| Button | Power On/Off button WPS/Wireless On/Off button Reset button |
| External Power Supply | 12 VDC / 1.0 A |
| Antenna Type | 3 x External antennas |
| Wireless | |
| Wireless Standards | IEEE 802.11ac/n/a 5 GHz IEEE 802.11n/g/b 2.4 GHz |
| Frequency | 5 GHz and 2.4 GHz |
| Signal Rate | 5 GHz: Up to 867 Mbps 2.4 GHz: Up to 300 Mbps |
| Reception Sensitivity | 5 GHz: 11a 54 Mbps: -76 dBm 11ac HT20: -68 dBm 11ac HT40: -65 dBm 11ac HT80: -62 dBm 11n HT20: -74 dBm 11n HT40: -71 dBm 2.4 GHz: 11g 54 M: -75 dBm 11n HT20: -72 dBm 11n HT40: -69 dBm |
| Transmit Power | CE:<=20 dBm （2.4 G <=23 dBm （5 G） |
| Wireless Functions | Enable/Disable Wireless Radio, WMM, Wireless Statistics |
| Wireless Security | 64/128-bit WEP, WPA / WPA2, WPA-PSK/ WPA2-PSK encryption |
| Software | |
| Quality of Service (QoS) | WMM, Bandwidth Control |
| WAN Type | Dynamic IP/Static IP/PPPoE/L2TP(Dual Access)/PPTP(Dual Access) |
| Management | Access Control Local Management Remote Management |
| DHCP | Server, Client, DHCP Client List, Address Reservation |
| Port Forwarding | Virtual Server, Port Triggering, UPnP, DMZ |
| Dynamic DNS | DynDns, NO-IP |
| VPN Pass-Through | PPTP, L2TP, IPSec |
| Access Control | Parental Control, Local Management Control, Host List, Access Schedule, Rule Management |
| Firewall Security | DoS, SPI Firewall MAC Address Filter IP and MAC Address Binding |
| Protocols | Supports IPv4 and IPv6 |
| USB Sharing | Support Samba(Storage)/FTP Server/Media Server/Printer Server |
| Guest Network | 1 x 2.4 GHz guest network 1 x 5 GHz guest network |
| VPN Server | OpenVPN, PPTP VPN |
| Other Specifications | |
| Certifications | CE, RoHS |
| System Requirements | Microsoft Windows 98SE, NT, 2000, XP, Vista or Windows 7, Windows 8/8.1/10MAC OS, NetWare, UNIX or Linux |
| Temperature & Humidity | Operating Temperature: 32 to 104°F / 0 to 40°C Storage Temperature: -40 to 158°F / -40 to 70°C Operating Humidity: 10 to 90% non-condensing Storage Humidity: 5 to 90% non-condensing |
| Dimensions & Weight | |
| Dimensions | 9.6 x 6.4 x 1.3" / 243.0 x 160.0 x 32.5 mm |
| Weight | Not specified by manufacturer |
