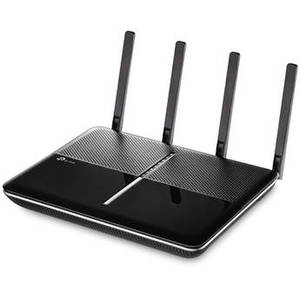

Archer C3150 V2 Wireless AC-3150 Dual-Band Gigabit Router
![]() |
From TP-Link
Availability: Item is currently available.
See more in Electronics
See more in Accessories
See more in Computers
Product Description
With NitroQAM and 4-stream technology built right in to the Archer C3150 V2 Wireless AC-3150 Dual-Band Gigabit Router from TP-Link, users benefit from enhanced wireless data transfer rates of up to 3150 Mbps. The ARCHER C3150 operates on both the 2.4 GHz and 5 GHz frequencies and, with built-in Smart Connect functionality, devices are assigned to the frequency best suited for its needs. In addition to dual-band frequencies, this TP-Link router supports 802.11a/b/g/n/ac Wi-Fi network standards allowing nearly any Wi-Fi enabled device to connect to the network. If a wired connection is needed, users can take advantage of four Gigabit Ethernet LAN ports, each offering a reliable wired network connection, as well as two USB ports designed for connecting USB-enabled peripherals directly to the network.
The ARCHER C3150 wireless router comes with a variety of features designed to simplify the process of managing the network, as well as enhance security. An intuitive Web UI eliminates the hassle of accessing special configuration pages to manage network settings while a one-touch WPS button offers a quick way to securely add new devices to the network. You can even tether Android or iOS devices to the TP-Link router to easily manage various aspects of the network without using the Web UI. Once configured, security features including guest network access, access controls, parental controls, and WPA/WPA2 encryption ensure the network remains secure and safe from intruders.
The ARCHER C3150 wireless router comes with a variety of features designed to simplify the process of managing the network, as well as enhance security. An intuitive Web UI eliminates the hassle of accessing special configuration pages to manage network settings while a one-touch WPS button offers a quick way to securely add new devices to the network. You can even tether Android or iOS devices to the TP-Link router to easily manage various aspects of the network without using the Web UI. Once configured, security features including guest network access, access controls, parental controls, and WPA/WPA2 encryption ensure the network remains secure and safe from intruders.
Hardware | |
Ethernet Ports | 4 x 10/100/1000 Mbps LAN Ports 1 x 10/100/1000 Mbps WAN Port |
USB Ports | 1 x USB 3.0 port 1 x USB 2.0 port |
Buttons | WPS Button, Reset Button, Wireless On/Off Button, LED On/Off Button, Power On/Off Button |
Antennas | 4 x dual-band detachable antennas |
External Power Supply | 12 V / 5 A |
Wireless | |
Wireless Standards | IEEE 802.11ac/n/a 5 GHz IEEE 802.11b/g/n 2.4 GHz |
Frequency | 2.4 GHz and 5 GHz |
Signal Rate | 2167 Mbps at 5 GHz, 1000 Mbps at 2.4 GHz |
Transmit Power | CE: <20 dBm (2.4 GHz), <23 dBm (5 GHz), FCC: <30 dBm |
Reception Sensitivity | 5 GHz: 11a 6 Mbps: -91 dBm 11a 54 Mbps: -72 dBm 11n HT20: -70 dBm 11n HT40: -69 dBm 11ac HT20: -60 dBm 11ac HT40: -61 dBm 11ac HT80: -56 dBm 2.4 GHz: 11g 54 Mbps: -73 dBm 11n HT40: -69 dBm |
Wireless Functions | Enable/disable wireless radio, WMM, Wireless Statistics |
Wireless Security | 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA-PSK2 encryptions |
Software | |
WAN Type | Dynamic IP/Static IP/PPPoE/PPTP/L2TP |
DHCP | Server, Client, DHCP Client List, Address Reservation |
Quality of Service (QoS) | WMM, Bandwidth Control |
Port Forwarding | Virtual Server, Port Triggering, UPnP, DMZ |
Dynamic DNS | DynDns, NO-IP |
VPN Server | PPTP VPN, OpenVPN |
Access Control | Parental Controls, Local Management Control |
Firewall Security | DoS, SPI Firewall, IP and MAC Address Binding |
Protocols | Supports IPv4 and IPv6 |
USB Sharing | Supports Samba (Storage)/FTP Server/Media Server/Print Server |
Management | Access Control, Local Management, Remote Management |
Guest Network | 1 x 2.4 GHz guest network 1 x 5 GHz guest network |
Other Specifications | |
Certifications | CE, FCC, RoHS |
System Requirements | Microsoft Windows 98SE, NT, 2000, XP, Vista, or Windows 7, 8, 8.1, 10, Mac OS, NetWare, UNIX or Linux Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0, or other Java-enabled browser Cable or DSL Modem Subscription with an internet service provider (for internet access) |
Temperature & Humidity | Operating Temperature: 32 to 104°F / 0 to 40°C Storage Temperature: -40 to 158°F / -40 to 70°C Operating Humidity: 10 to 90% non-condensing Storage Humidity: 5 to 90% non-condensing |
Dimensions | 10.4 x 7.8 x 1.5" / 263.8 x 197.8 x 37.3 mm |
Weight | Not specified by manufacturer |
