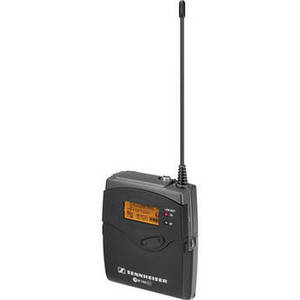

The Sennheiser EK 100 G3 is a lightweight camera-mount receiver that features an all-metal housing. The unit has 1680 tunable UHF frequencies and synchronizes with G3 transmitters at the touch of a button. A 3.5mm audio output will provide clean output signal using the included adapter cables. The receiver operates on 2 standard AA batteries, and an optional 12 VDC adapter is also available. The included shoe-mount adapter allows you to mount the receiver on a camera for convenient portable use.
| Type of Receiver | EK 100 Camera-Mount Receiver
|
| RF Carrier Frequency Range | G: 566-608 MHz
|
| Approx. Working Range | Maximum 490'
|
| Overall Frequency Response | 25 Hz - 18 kHz
|
| Signal-to-Noise Ratio | Greater than 110 dB
|
| # Of Channels | 1680
|
| Type of Outputs | Standard 3.5 mm Mini
|
| Headphone Monitoring | None
|
| Power Requirements | 2 x 1.5 V AA Batteries
6-10 Hours
|
| Mounting Options | Camera Shoe Mount
|
| Antenna Type | Single Flexible Antenna (M3 Type)
|
| Dimensions (HxWxD) | 3.2 x 2.5 x 0.9" (81 x 64 x 23 mm)
|
| Weight | 5.6 oz (160 g)
|
