HT-S3900 5.1-Channel Home Theater System
 |
From Onkyo
Availability: Item is currently available.
See more in Electronics
See more in Home Theater
Product Description
Enjoy an immersive surround sound experience with the Onkyo HT-S3900 5.1-Channel Home Theater System. It delivers up to 60W per channel at 8 Ohms for robust audio playback. The receiver has built-in Bluetooth technology, which allows you to wirelessly stream music from compatible audio sources such as computers, MP3 players, smartphones, tablets, and more.
Wired connectivity includes four HDMI inputs, two composite video, one optical, one digital coaxial, and three stereo RCA audio inputs. The HDMI ports support 4K resolution, which can be passed through to your display via the HDMI output, which supports ARC for the reproduction of display-based audio, such as that from built-in apps like Netflix or YouTube.

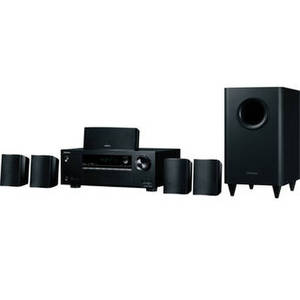

The included speaker package features a 5.1-channel configuration, with two front speakers, a center channel, two surround speakers, and a 6.44" down-firing passive subwoofer.
Wired connectivity includes four HDMI inputs, two composite video, one optical, one digital coaxial, and three stereo RCA audio inputs. The HDMI ports support 4K resolution, which can be passed through to your display via the HDMI output, which supports ARC for the reproduction of display-based audio, such as that from built-in apps like Netflix or YouTube.
The included speaker package features a 5.1-channel configuration, with two front speakers, a center channel, two surround speakers, and a 6.44" down-firing passive subwoofer.
| Receiver | |
| Channels | 5.1 |
| Power Output per Channel | 60 W per channel @ 8 Ohms, 20 Hz to 20 kHz, 0.7% THD, 2-channels driven, FTC 120 W per channel @ 6 Ohms, 1 kHz, 10% THD, 1-channel driven |
| THD & Noise | 0.06% (20 Hz to 20 kHz, 8 Ohms, 1-channel driven, 50 W) |
| Input Sensitivity and Impedance | 250 mV / 47 kOhms (line) |
| Frequency Response | 10 Hz to 100 kHz / 0 dB, -3 dB (Direct Mode) |
| Tone Control | ±10 dB, 100 Hz (bass) ±10 dB, 10 kHz (treble) |
| Signal-to-Noise Ratio | 106 dB (line, IHF-A Network, 1 kOhm shorted) |
| Impedance | 6 to 16 Ohms |
| Video | |
| Input Sensitivity/Output Level and Impedance | Composite: 1.0 Vp-p ±5%/75 Ohms |
| Tuner Section | |
| Tuning Frequency Range | FM: 87.5 MHz to 108 MHz AM: 530 kHz to 1700 kHz |
| FM/AM Preset Memory | 30 stations |
| Connectivity | |
| Bluetooth | Yes, with aptX |
| Audio Return Channel (ARC) | Yes |
| Inputs | 4 x HDMI 2 x composite video 1 x optical TOSLINK 1 x digital coaxial 3 x stereo RCA 1 x USB (front) |
| Outputs | 1 x HDMI 1 x composite video 1 x 1/4" (6.35 mm) headphone (front) |
| Other Connections | 1 x AM antenna in 1 x FM antenna in |
| Speaker Connectors | 6 x spring clip pairs |
| Speaker System | |
| Channels | 5.1 |
| Speaker Type | Front, Center, Surround: Full-range, acoustic suspension, passive Subwoofer: Bass reflex, passive |
| Drivers | Front, Center, Surround: 1x 3" (7.7 cm) cone Subwoofer: 1x 6.44" (16 cm) cone |
| Frequency Response | Front, Surround: 80 Hz to 20 kHz Center: 70 Hz to 20 kHz Subwoofer: 28 to 5 kHz |
| Output Sound Pressure Level | Front, Surround, Subwoofer: 83 dB/W/m Center: 84 dB/W/m |
| Maximum Input Power | Front, Center, Surround: 150 W Subwoofer: 100 W |
| Nominal Impedance | 6 Ohms |
| General | |
| Power Consumption | Active: 190 W Standby: 0.35 W |
| Power Requirements | 120 VAC, 60 Hz |
| Dimensions (W x H x D) | Receiver: 17.1 x 6.7 x 12.9" (435 x 168 x 326.5 mm) Each Front/Surround Speaker: 4 x 5.5 x 3.75" (100 x 140 x 95 mm) Center Speaker: 9.4 x 3.75 x 3.75" (240 x 95 x 95 mm) Subwoofer: 9.1 x 16.5 x 14.1" (230 x 418 x 358 mm) |
| Weight | Receiver: 17 lb (7.7 kg) Each Front/Surround Speaker: 1.3 lb (0.6 kg) Center Speaker: 1.5 lb (0.7 kg) Subwoofer: 11.6 lb (5.3 kg) |
