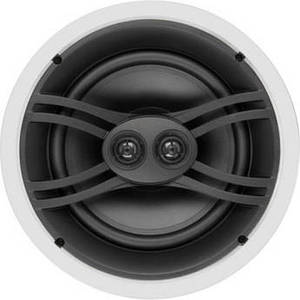

The NS-IW480CWH is a versatile, easy-to-install in-ceiling speaker that reproduces natural sound like only Yamaha can. The woofer is set in a tilted mounting allowing the user to aim the sound. Swiveling "Sound Max" tweeters create sizzling highs up to 28kHz. For maximum flexibility, the aluminum grill is paintable and comes with a protective cover.
| System | |
| Speaker Design | 3-Way in-ceiling
|
| Power Rating | 120W/35W (max/nominal)
|
| Impedance | 8 Ohms
|
| Frequency Response | 50Hz - 28kHz
|
| Sensitivity | 86dB/2.83V/1m
|
| Crossover | 6kHz & 9kHz
|
| Enclosure | Paintable, aluminum grill
|
| Shielded | No
|
| Drivers | |
| Tweeter | 2 x 0.75" (19mm) dome tweeter
|
| Midrange | None
|
| Woofer | 8" (203mm) Polypropylene mica filled cone woofer
|
| General | |
| Connector Type | 2 x Binding Posts
|
| Configuration | 3-Way
|
| Construction | Aluminum Grill
|
| Dimensions | 10.3" (262mm) wide4.7" deep
|
| Cut-Out Size | 9.4" (240mm) wide
|
| Mounting Depth | 4.4" (112mm) deep
|
| Weight | 4.6 lbs (2.1 kg) / unit
|
| Color | White
|
