HLM-2450WB Multi-Format LCD Monitor
 |
From Ikegami
Availability: Item is currently available.
See more in Electronics
See more in Accessories
See more in Computers
Product Description

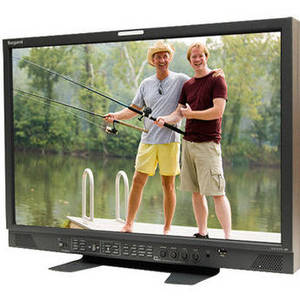

The Ikegami HLM-2450WB Multi-Format LCD Monitor is a 24" high definition LCD monitor designed specifically for professional editing workstations and broadcast studios. The monitor offers a plethora of features to make the process from acquisition all the way to delivery as smooth as possible. Features include HD-SDI, tally, signal generator, waveform display, split screen and much more. Additionally, its modular design allows for additional input boards to be added and removed depending on your specific needs.
| Application | Broadcast Monitoring |
| LCD Size | 24" |
| Video System | NTSC/PAL 1080i/60 (59.94), 1080i/50, 1080p/30 (29.97), 1080psF/30, 1080p/25, 1080psF/25, 1080p/24, (23.98), 1080psF/24 (23.98), 1035i/60, 59.94, 720p/60 (59.94), 720p/50, 720p/30 (29.97), 720p/25, 720p/24 (23.98), 480i/59.94, 480p/59.94, 575i/50 |
| Picture Elements | 1920 x 1200 |
| Viewing Angle | 178° |
| Contrast Ratio | 1000:1 (max) |
| Brightness | 400cd/m² |
| Number of Colors | 1.07 Billion |
| Input and Output Connectors | Composite Video: BNC (x2 Input) HD-SDI: BNC (x2 Input, x1 Output) DVI: DVI-D (x1 Input) Analog Audio: RCAx2 (x1 Input) Tally: 9-Pin DSub (x1) Remote: RS-232C (x1) |
| Speakers | Built-in Stereo (1W + 1W) |
| Picture Controls | Menu System, Front Panel Controls |
| Remote Control | Serial RS-232C, Parallel, IR |
| Mount Type | Not Specified By Manufacturer |
| Power Requirements | 100-240VAC ±10%, 50/60 Hz |
| Power Consumption | 98-120W |
| Dimensions (WxHxD) | 22.1 x 15.6 x 3.5" (56.2 x 39.6 x 9cm) |
| Weight | Display: 19.8 lbs (9kg) Stand: 7.1 lbs (2.3kg) |
