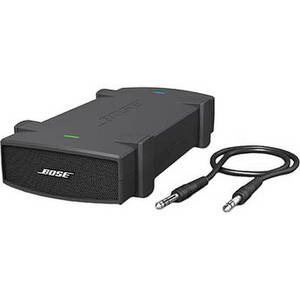

The Bose A1 PackLite Powered Amplifier Module is intended to enhance the power and bass response of the Bose L1 Compact Line Array Systems. The A1 PackLite amplifier is completely portable, rated at 125 watts @ 8 ohms and is capable of driving up to 2x B1 bass module speakers, or other passive speakers.
| Rated Power Output | 4 ohms load: 250 watts RMS (1 kHz, 0.1% THD)
8 ohms load: 125 watts RMS (1 kHz, 0.1% THD)Class D Circuitry
|
| Signal-to-Noise Ratio | 100 dB (20 Hz to 20 kHz)
|
| Voltage Gain | 30 dB
|
| Input Sensitivity | 1.15 V (+3.4 dBu)
Automatic, balanced/unbalanced level adjust
|
| Input Impedance | 55 kOhms unbalanced
110 kOhms balanced
|
| Aux Input Clipping Level | 10 Vrms (+22 dBu)
|
| Frequency Response | 20 Hz to 20 kHz ± 0.5 dB
|
| Protection | Self-resetting thermal, output short circuit, and over-current
|
| Power | 1.8A, 110 VAC; 0.9 A, 230 VAC
28 A (100-120 VAC)
|
| Operating Temperature | 122°F (50°C)
|
| Dimensions (WxHxD) | 5.6 x 2.3 x 10.3" (140 x 56 x 258 mm)
|
| Weight | 3.0 lbs (1.4 kg)
|
