Product Description

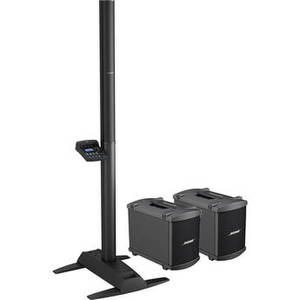

The speaker features 12 small drivers arranged using Articulated Array speaker technology in a slim, vertical enclosure, creating nearly 180 degrees of horizontal coverage and consistent tonal balance. Setting up the L1 Model 1S is quick and easy; simply place the speaker extensions into the amplifier base, and slide the speaker on top of the extensions. Two extensions are included, and allow easy height adjustment.
The T1 ToneMatch is designed to enrich your sound with a variety of enhancement tools, and provides you with three mic/Hi-Z inputs with preamps and two line inputs. Its powerful features and tone-shaping tools quickly bring you closer to the true sound of your voice and instruments. This versatile digital mixer helps you sound your best in live performances. It expands the input capacity of your L1 system and gives you instant access to a host of proprietary EQ presets, standard effects, and processors. The 5-channel engine features 100 ToneMatch presets for instruments and microphones, intelligent zEQ, and a suite of studio-class effects and professional-quality processors.
Type | Self-powered, two-way |
Audio I/O | ToneMatch port: DC output/data input Ethercon/RJ45 connector for a T1 ToneMatch audio engine Analog Input: 1x line-level 1/4" TRS phone plug Bass Module Out: 1x Neutrik NL4 (powers up to 2x B1 Bass module or 1x B2 Bass module) |
Power | Power rating: 100-120 VAC, 50/60 Hz, 500 W (USA/Canada) Peak inrush current: 32 A @ 120 V, 60 Hz (USA/Canada); 61 A @ 230 V 50 Hz (Europe) |
Speaker Impedance | L1 model 1S loudspeaker: 4 ohms B1 bass module: 8 ohms |
Dimensions (HxWxD) | L1 Model 1S top array 43.5 x 3.5 x 4" (111 x 9 x 10.5 cm) L1 Model 1S bottom extension 39.63 x 4.15 x 4.13" (100.6 x 10.6 x 10.5 cm) L1 Model 1S power stand 5 x 10 x 27" (12.8 x 26.2 x 69.2 cm) B1 Bass Module 15 x 10.25 x 17.75" (38 x 26 x 45 cm) |
Weight | L1 Model 1S top array 16.3 lb (7.4 kg) L1 Model 1S bottom extension 8.5 lb (3.8 kg) L1 Model 1S power stand 23.7 lb (10.7 kg) B1 Bass Module 25.1 lb (11.4 kg) |
