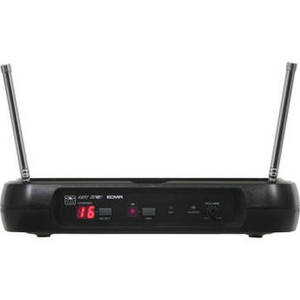

The Galaxy Audio ECMR Wireless Microphone Receiver is intended for use with the ECM wireless microphone system. The ECMR receiver features 16 user selectable channels and diversity reception, infrared (IR) channel sync, and may be used with the MBP52 bodypack transmitter and lavalier microphone, or HH52 handheld transmitter.
| Receiver | |
| Type of Receiver | ECMR Diversity
|
| Type of Outputs | XLR and 1/4" Phone
|
| Power Requirements | 13.5VDC at 300mA, Supplied by External Power Supply
|
| Battery Type/Approx. Life | None - AC power only
|
| Display | Dual Digit LED
|
| Antenna Type | Two band dependent antennas
|
| Dimensions (HxWxD) | 1.75 x 9.25 x 4.75" (44.45 x 235 x 121mm)
|
| Weight | 0.85 lbs. (0.39 kg)
|
