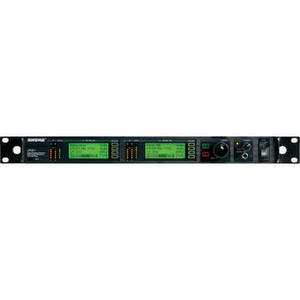

UR4D+ Dual Diversity UHF Wireless Microphone Receiver
 |
From Shure
Availability: Item is currently available.
See more in Electronics
See more in Home Theater
Product Description
The Shure UR4D+ Dual Diversity UHF Wireless Microphone Receiver is capable of receiving 2 microphone transmitters simultaneously and is intended for use with compatible Shure UHF series handheld and bodypacks. The UR4D+ is a durable, single space, rack-mountable unit with diversity receiver circuitry that aides in minimizing Radio Frequency (RF) interference and noise.
Dual back lit LCD provides access to all programmable parameters. Audio outputs include a microphone / line level switchable balanced XLR with ground lift and 1/4" phone connectors. USB and Ethernet connections are provided for direct integration with a PC and network arrays.
| RF Carrier Frequency Range | H4 / 518 - 578 MHz |
| Signal-to-Noise Ratio | Ultimate Quieting (ref. 45 kHz deviation) <100 dB, A-weighted |
| Overall Frequency Response | 40Hz to 18kHz +/- 1dB |
| # Of Channels | 2400 Selectable Frequencies Across 60 MHz Bandwidth |
| Type of Receiver | UR4D+ Dual Receiver - Diversity |
| Type of Outputs | XLR 3-pin: Mic / Line Switchable, Balanced Low-Z with Ground Lift Switch 1/4" Phone: 200 ohmsUSB: Computer Interface RJ-45: Ethernet Network Interface |
| Headphone Monitoring | 1/4" Phone with level control dial |
| Power Requirements | 100 to 240 Vac, 50/60Hz 0.8 Amps max. |
| Battery Type/Approx. Life | None - AC power only |
| Display | Backlit LCD: Group and Channel, Frequency, Automatic Transmitter Sync, Receiver name, Output Level, Squelch, Receiver Lock, LCD View, Contrast, ToneKey, Network Parameters |
| Mounting Options | Rack Mount Hardware (Included) |
| Antenna Type | Two band dependent antennas |
| Dimensions | 1.72 x 19 x 14.39" (44 x 483 x 366mm) (HxWxD) |
| Weight | 11 lbs. (5 kg) |
