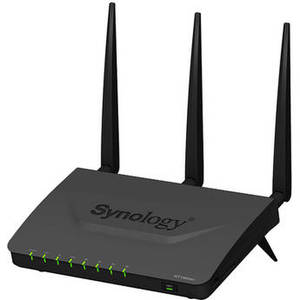

RT1900ac Dual-Band Wireless-AC1900 Gigabit Router
![]() |
From Synology
Availability: Item is currently available.
See more in Electronics
See more in Accessories
See more in Computers
Product Description
With three omnidirectional high-gain antennas, the RT1900ac Dual-Band Wireless-AC1900 Gigabit Router from Synology provides high speed Wi-Fi connectivity to more devices. Operating on both the 2.4 GHz and 5 GHz frequencies along with support for the 802.11ac Wi-Fi network protocol, this router offers wireless data transfer rates of up to 1900 Mbps. This enhanced data transfer rate is perfect for tasks like streaming multimedia content, transferring large files, and more. Additionally, the RT1900ac is DLNA certified and supports the UPnP protocols simplifying the process of streaming multimedia content to devices such as game consoles and smart TVs. Synology has also worked Beamforming technology into this router to provide a targeted signal to wireless devices for a stronger, more reliable connection.
Along with extensive wireless connectivity, the RT1900ac comes equipped with four Gigabit Ethernet ports to connect Ethernet enabled devices directly to the network. You can also connect USB storage devices and SD memory cards directly to the router via the USB 3.0 port and card reader slot. Once connected, this Synology router supports EXT4, FAT, NTFS, and HFS+ file systems along with shared folder privileges making it easy for users to access stored content from anywhere on the network.
Setup and configuration of the RT1900ac is easy thanks to the intuitive web based configuration tool. The router can even be set up from a Android or iOS based device using the DS router app. Once configured, the administrator can manage various aspects of the network from parental controls to web filtering and more whether at home or on the go.
Along with extensive wireless connectivity, the RT1900ac comes equipped with four Gigabit Ethernet ports to connect Ethernet enabled devices directly to the network. You can also connect USB storage devices and SD memory cards directly to the router via the USB 3.0 port and card reader slot. Once connected, this Synology router supports EXT4, FAT, NTFS, and HFS+ file systems along with shared folder privileges making it easy for users to access stored content from anywhere on the network.
Setup and configuration of the RT1900ac is easy thanks to the intuitive web based configuration tool. The router can even be set up from a Android or iOS based device using the DS router app. Once configured, the administrator can manage various aspects of the network from parental controls to web filtering and more whether at home or on the go.
Hardware | |
CPU | Dual-core 1.0 GHz |
RAM | DDR3 256 MB |
Antenna Type | 3T3R Omnidirectional high-gain dipole (2.4 GHz / 5 GHz) |
Antenna Gain | 2.4 GHz 3.5 dBi, 5 GHz 4.6 dBi |
LAN Port | 4 x Gigabit (RJ-45) |
WAN Port | 1 x Gigabit (RJ-45) |
External Ports | 1 x USB 3.0 (5 V, 1.5 A power output) 1 x SD card reader (SDXC, SDHC) |
Buttons | WPS, USB/SD eject, Power, Reset, Wi-Fi On/Of |
AC Input Power Voltage | 100 to 240 VAC |
Power Frequency | 50 to 60 Hz, single phase |
Temperature & Humidity | Operating Temperature: 40 to 104°F / 5 to 40°C Storage Temperature: -5 to 140°F / -20 to 60°C Relative Humidity: 5 to 95% |
Wireless | |
Wireless Standards | IEEE 802.11ac/n/a 5 GHz IEEE 802.11b/g/n 2.4 GHz simultaneous dual-band |
Frequency | 2.4 GHz: 600 Mbps (256-QAM supported) 5 GHz: 1300 Mbps |
Wireless Security | WEP, WPA/WPA2-Personal, WPA/WPA2-Enterprise, Wi-Fi Protected Setup (WPS) 2.0 |
Wireless Functions | Independent 2.4 GHz / 5 GHz Wi-Fi schedule On/Off Guest Network: 2.4 GHz / 5 GHz 3G/4G dongle support (3G/4G dongle is not included) |
Network | |
Internet Connection | Dynamic IP, Static IP, PPPoE |
Port Forwarding | Setup via manual management or UPnP Maximum Port Forwarding Rules: 64 Maximum UPnP Rules: 64 |
Port Triggering | Maximum Port Triggering Rules: 32 Minimum Port Triggering Timeout: 30 s Maximum Port Triggering Timeout: 3600 s |
IPv6 | IPv6 DHCP server/client, IPv6 tunneling |
DHCP | Server/client mode, client list, MAC address reservation Maximum DHCP Reservations: 500 |
VPN | VPN server/client (PPTP, OpenVPN, L2TP/IPSec) VPN pass-through (PPTP, IPSec, L2TP) |
Static Routes | Maximum IPv4 Static Routes: 100 Maximum IPv6 Static Routes: 100 |
Diagnosis | Ping, Traceroute |
Management | |
Operating System | Synology Router Manager (SRM) |
Remote Access | Synology QuickConnect & Dynamic DNS (DDNS) |
Operation Modes | Wireless Router, Wireless AP, Wireless Client |
Wake on LAN | Yes Maximum Connected Devices: 100 |
Management Protocols/Notifications | Email, SMS, push service (via DS router) |
Print Server | Maximum Printers: 1 |
System Requirements | |
Supported Clients | Windows XP onwards, Mac OS X 10.7 onwards, Ubuntu 12 onwards |
Supported Browsers | Chrome Firefox Internet Explorer: 8 and higher Safari 7 and higher Safari (iOS 7 and higher on iPad) Chrome (Android 4.0 and higher on tablets) |
Other Specifications | |
Application Package Center | Media Server (DLNA/UPnP) Media indexing DLNA certified PS3/PS4/Xbox 360/Xbox One supported RADIUS Server Provides centralized authentication, authorization, and accounting for wireless network access DNS Server Helps users find and translate domain names into IP addresses Download Station Supported download protocols: BT/HTTP/FTP/NZB/eMule Maximum Concurrent Download Tasks: 50 Maximum Concurrent BT Download Tasks: 50 VPN Server Supported VPN Protocols: PPTP, OpenVPN, L2TP/IPSec Maximum Connection: 5 |
USB/SD Card File Service | File System EXT4, FAT, NTFS, HFS+ Access Support File explorer (via LAN only) Web browsers: Chrome, Firefox, Internet Explorer: 8 and higher, Safari 7 and higher, Safari (iOS 7 and higher on iPad), Chrome (Android 4.0 and higher on tablets) Mobile device: DS file |
Mobile Apps | Network traffic overview Wi-Fi management Parental Control Traffic Control Network security (firewall, port forwarding, Internet ban) |
Encryption | WEP, WPA/WPA2-Personal, WPA/WPA2-Enterprise |
RoHS Compliant | Yes |
Dimensions | 2.6 x 8.1 x 6.3" / 66 x 206 x 160 mm |
Weight | 1.1 lb / 0.51 kg |
