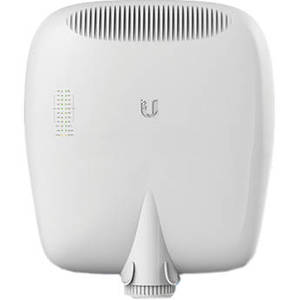

EP-R8 EdgePoint WISP Gigabit Router
 |
From Ubiquiti Networks
Availability: Item is currently available.
See more in Electronics
See more in Accessories
See more in Computers
Product Description
The EP-R8 EdgePoint WISP Gigabit Router from Ubiquiti is designed to simplify your hardware by replacing the networking cabinet, which usually contains a patch panel, power rack, multiple PoE adapters, switch, router, modem, and more. It is encased in a die-cast aluminum alloy polycarbonate shell with UV resistance and features a combination of robust routing performance, fiber backhaul capability, and the convenience of passive PoE support. With the EP-R8, you'll have access to a total of eight ports: six 10/100/1000 RJ45 ports with 24V / 0.7A passive PoE, and two 10/100/1000 RJ45/SFP combo ports with 54V or 24V / 1.4A passive PoE. Furthermore, use the EdgePoint software, accessible via a network port and a web browser, to monitor and manage your network.
| Enclosure Material | Die-cast Aluminum Alloy and Polycarbonate with UV Resistance |
| Ports | 1 x RJ45 Serial Port 1 x RJ 45 PoE In Port Data Ports: 6 x 10/100/1000 RJ45 Ports 2 x 10 /100/1000 RJ45/SFP Combination Ports |
| Processor | Dual-Core 600 MHz, MIPS64 with Hardware Acceleration for Packet Processing |
| System Memory | 2 GB DDR3 1600 MHz RAM |
| Code Storage | 4 GB |
| Button | Reset |
| LEDs | System Power eth0 Speed/Link/Activity eth1 to eth7 Speed/Link/Activity, PoE SFP Speed/Link/Activity |
| Pole Mount | Yes |
| Wall Mount | Yes |
| Power | |
| Max Power Consumption | 40 W (Excludes PoE Output) |
| Power Input | 1 x DC Terminal Block or 1 x RJ45 (PoE In and eth0) |
| Power Supply | Min. 54 V / 0.8 A (Excludes PoE Output Power) |
| DC Input | 54 VDC, 6 A |
| Passive PoE | Input: 2 x 54 V / 1.5 A, 4-Pair (+1, 2, 4, 5; -3, 6, 7, 8) Passive PoE, eth0 and PoE In(PoE In is DC Only, No Data) Output: 2 x 54V or 24V / 1.4A, 4-Pair (+1, 2, 4, 5; -3, 6, 7, 8) Passive PoE, eth1 to eth2 5 x 24V / 0.7A, 2-Pair (+4, 5; -7, 8) Passive PoE, eth3 to eth7 |
| Monitoring | 1 x DC Terminal Block, Input Power 1 x RJ45, PoE In and eth0, Input Power |
| Voltage Range | 56 to 42 VDC |
| Environmental | |
| Operating Temperature | -40 to 149°F (-40 to 65°C) |
| Operating Humidity | 10 to 90% Noncondensing |
| General | |
| Certifications | CE, FCC, IC |
| Dimensions | With Wall-Mount: 12.86 x 15.07 x 4.15" (326.6 x 382.7 x 105.5 mm) Without Wall-Mount: 12.86 x 15.07 x 3.50" (326.6 x 382.7 x 88.8 mm) |
| Weight | With Wall-Mount: 8.38 lbs (3.8 kg) Without Wall-Mount: 7.5 lbs (3.4 kg) |
