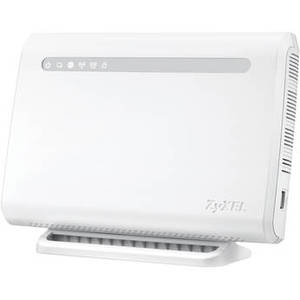

NBG6815 AC2200 MU-MIMO Dual-Band Wireless Gigabit Router
![]() |
From ZyXEL
Availability: Item is currently available.
See more in Electronics
See more in Accessories
See more in Computers
Product Description
With built-in MU-MIMO technology, the NBG6815 AC2200 MU-MIMO Dual-Band Wireless Gigabit Router from ZyXEL offers multiple data streams providing data transfer rates of up to 2200 Mbps. In addition to MU-MIMO technology, this router supports the 802.11a/b/g/n/ac networking standards and operates on both the 2.4 GHz and 5 GHz frequencies. Setup and configuration of this ZyXEL router is simple thanks to the mobile-friendly setup wizard that guides you through the entire setup process. ZyXEL even offers a free mobile application from which users can configure settings and manage other aspects of the network while on-the-go. If a wired connection is needed, the NBG6815 comes equipped with four Gigabit Ethernet ports as well as two USB 2.0 ports to connect devices like USB hard drives to the network. Once configured, ZyXEL's StreamBoost technology helps to manage network bandwidth to ensure applications such as video streaming, online gaming, and other bandwidth intensive tasks receive the necessary network resources to operate smoothly.
System Specifications | |
Wireless Standard | 802.11 b/g/n 2.4 GHz 802.11 a/n/ac 5 GHz |
Wireless Speed | Transmit 2.4 GHz: 450 Mbps 5 GHz: 1733 Mbps Receive 2.4 GHz: 450 Mbps 5 GHz: 1733 Mbps |
Wireless Security | WPA/WPA2, WPA-PSK/WPA2-PSK |
Wireless Features | Guest Wi-Fi Wi-Fi Protected Setup (WPS) Wi-Fi Multimedia (WMM) Auto channel selection Wireless scheduling Wireless output power management MAC address filtering |
Routing | Network Address Translation (NAT) WAN type: Static IP, DHCP, PPPoE DHCP server/client IGMP v1/v2 Dynamic DNS Auto-IP change IPv6 |
VPN Pass-Through | IPSec/PPTP/L2TP |
Firewall | Stateful Packet Inspection (SPI) Deny of Service (DOS) Prevention |
Application Control | Usage monitor Smart QoS (StreamBoost) Parental control ZyXEL ONE Connect |
USB Support | Mass storage support by SMB/CIFS/FTP Print server |
Media Server | DLNA |
System Management | Online firmware upgrade Remote management Wake on LAN UPnP |
Operation Mode | Router mode Access point mode |
Hardware Specifications | |
CPU | 700 MHz processor |
RAM | 256 Mbytes |
WAN | 1 x 10/100/1000 Mbps Ethernet RJ-45 port with auto MDI/MDIX support |
LAN | 4 x 10/100/1000 Mbps Ethernet RJ-45 ports with auto MDI/MDIX support |
USB | 2 x USB 2.0 ports |
Antenna | Internal antennas |
LED Indicator | Power/SYS WAN Internet WLAN_2.4G WLAN_5G WPS |
Buttons | Power on/off Reset/Restore WPS Wi-Fi on/off LED on/off |
Power | 12 V DC, 3 A |
Power Consumption | 30 W |
Environment | |
Temperature & Humidity | Operating Temperature: 32 to 104°F / 0 to 40°C Storage Temperature: -22 to 158°F / -30 to 70°C Operating Humidity: 10 to 90% non-condensing Storage Humidity: 10 to 95% non-condensing |
Certification | |
Safety / EMC | CE-LVD, CE, FCC |
Dimensions & Weight | |
Dimensions | 10.25 x 7.17 x 3.20" / 260.4 x 182.0 x 81.2 mm |
Weight | 1.28 lb / 578 g |
