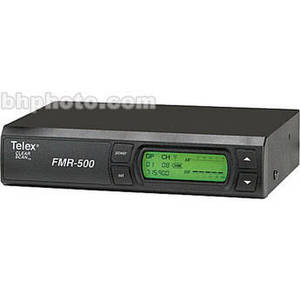

FMR-500 Wireless Receiver (Band A - 648 - 676MHz)

FMR-500 Wireless Receiver (Band A - 648 - 676MHz)
From Telex
Availability: Item is currently available.
See more in Electronics
See more in Home Theater


Product Description
The Telex FMR-500 is a half-rack mount wireless microphone receiver designed for the Telex FMR-500 wireless microphone series. Diversity reception, results in minimal RF drop-out and interference. The FMR-500 features balanced XLR and 1/4" phone outputs and the back-lit LCD display provides, transmitter battery status, channel and frequency, diversity status, radio frequency and audio level. The Clear Scan auto channel selection allows quick setup, transmitter matching, and new channel selection if RF conditions change.
Type of Receiver FMR-500 UHF Diversity
RF Carrier Frequency Range Band A - 648 - 676MHz
Approx. Working Range not specified by manufacturer
Overall Frequency Response 50Hz to 15kHz +/- 2dB
Signal-to-Noise Ratio > 100dB A Weighted
# Of Channels 1,112 in 25kHz steps
Type of Output(s) Balanced 3-pin XLR
Balanced 1/4" Phone
Headphone Monitoring No
Power Requirements 12v AC/DC 300mA
Battery Type/Approx. Life No battery, 12v AC/DC 300mA
Display Backlit LCD -Group/Channel, Frequency, Transmitter Battery, Diversity Status, RF and Audio Level Meters
Mounting Options Includes single and dual rack mount hardware with front mount antenna cables
Antenna Type Flexible external 1/4 wave
Dimensions 1.72 x 7.5 x 5.9" (43.69 x 190.50 x 150mm) (HxWxD)
Weight not specified by manufacturer
