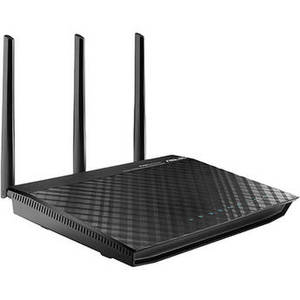

RT-N66R N900 Wireless Dual-Band Gigabit Router
![]() |
From ASUS
Availability: Item is currently available.
See more in Electronics
See more in Accessories
See more in Computers
Product Description
With wireless data transfer rates of up to 900 Mbps, the RT-N66R N900 Wireless Dual-Band Gigabit Router from ASUS makes it easy to transfer large files, stream multimedia content to tablets, TVs, and smartphones, and much more. Operating on both the 2.4 GHz and 5 GHz frequencies users can connect to the 5 GHz frequency for a more stable, faster, less congested connection. The detachable wireless antennas offer enhanced coverage to virtually eliminate those dreaded dead spots. With the ASUS RT-N66R it is even possible to access devices such as USB hard drives and printers connected to either of the router's USB ports directly through the network. If a wired connection is needed this router comes equipped with four Gigabit LAN ports offering a reliable, wired Ethernet connection.
Setup and configuration of the RT-N66R is simple and can be accomplished through three easy steps from nearly any smartphone, tablet, or computer. Once the initial setup is complete, the network admin can then utilize a variety of tools provided by the ASUSWRT Dashboard including management of clients and allocation of network resources. You can even optimize network connectivity settings using intuitive Quality of Service functionality making it easy to allocate bandwidth to specific applications and or devices. The ASUS RT-N66R even supports guest network access giving guests web access while keeping other areas of the network off limits.
Setup and configuration of the RT-N66R is simple and can be accomplished through three easy steps from nearly any smartphone, tablet, or computer. Once the initial setup is complete, the network admin can then utilize a variety of tools provided by the ASUSWRT Dashboard including management of clients and allocation of network resources. You can even optimize network connectivity settings using intuitive Quality of Service functionality making it easy to allocate bandwidth to specific applications and or devices. The ASUS RT-N66R even supports guest network access giving guests web access while keeping other areas of the network off limits.
Network Standards | IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IPv4, IPv6 |
Data Rate | 802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps 802.11b: 1, 2, 5.5, 11 Mbps 802.11g: 6, 9, 12, 18, 24, 36, 48, 544 Mbps 802.11n: up to 450 Mbps |
Antenna | 3 x Detachable dBi antenna |
Operating Frequency | 2.4 GHz / 5 GHz |
Encryption | 64-bit WEP, 128-bit WEP, WPA2-PSK, WPA-Enterprise, WPA2-Enterprise, WPS support |
Firewall & Access Control | Firewall: SPI intrusion detection, DoS protection Access control: Parental control, Network Service filter, URL filter, Port filter |
Management | UPnP, DLNA, DNS Proxy, DHCP, NTP Client, DDNS, Port Triger, Virtual Server, DMZ |
VPN Support | IPSec Pass-Through PPTP Pass-Through L2TP Pass-Through PPTP server |
WAN Connection Type | Internet Connection Type: Automatic IP, Static IP, PPPoE (MPPE supported), PPTP, L2TP Multicast Proxy support |
Utilities | • Download Master - support BT, NZB, HTTP, ED2K - support encryption, DHT, PEX and magnet link - upload and download bandwidth control - download scheduling • Media server: Image: JPEG Audio: mp3, wma, wav, pcm, mp4, lpcm, ogg Video: asf, avi, divx, mpeg, mpg, ts, vob, wmv, mkv, mov • QoS: WMM User definable rules for IP/MAC/Port. Upload and Download bandwidth management.ACK/SYN/FIN/RST/ICMP with Highest priority • Guest Network 3 x 2.4 GHz guest network 3 x 5 GHz guest network • Printer Server Multi-functional printer support (Windows only), LPR protocol support • File Server Samba and FTP server with account management • PPTP VPN server • Network Map • Traffic Monitor |
Ports | 4 x RJ45 for 10/100/1000/Gigabits BaseT for LAN 2 x USB 2.0 |
Buttons | WPS Button, Reset Button, Power Button |
LED Indicators | 4 x LAN 1 x WAN 2 x AIR 1 x USB |
Power Supply | AC Input: 110 ~240 V (50~60 Hz) DC Output: 19 V with max. 1.58 A current |
Supported Applications | 3G/4G data sharing Printer server Download Master AiDisK Multiple SSIDs Parental Control |
Dimensions | 8.2 x 5.9 x 1.4" / 207.0 x 148.8 x 35.5 mm |
Weight | 0.99 lb / 0.45 kg |
