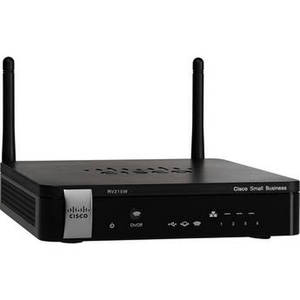

RV215W Wireless-N VPN Router
 |
From Cisco
Availability: Item is currently available.
See more in Electronics
See more in Accessories
See more in Computers
Product Description
The RV215W Wireless-N VPN Router from Cisco provides secure and business-class connectivity to the internet from small and home offices and remote locations. It features a USB port to enable 3G and 4G WAN connectivity for remote regions or temporary connectivity. The RV215W delivers connectivity for small offices and remote workers with a high-speed 802.11n wireless access point, a 4-port 10/100 Mb/s Fast Ethernet switch, an intuitive, browser-based device manager, and support for the Cisco FindIT Network Discovery Utility. Its combination of business-class features, support for virtual networks that enable highly secure guest access, simple installation, and user-friendly interface makes this router suitable for small businesses with five or fewer employees.
| Router | |
| Routing | Static routing Dynamic routing Routing Information Protocol (RIP) v1 and v2 Inter-VLAN routing |
| Layer 2 Switching | 802.1Q-based VLANs 4 x Active VLAN (3 to 4094 range) |
| Network | Dynamic Host Configuration Protocol (DHCP) server Point-to-Point Protocol over Ethernet (PPPoE) Point-to-Point Tunneling Protocol (PPTP) Layer 2 Tunneling Protocol (L2TP) DNS proxy DHCP relay agent IGMP Proxy and multicast forwarding Rapid Spanning Tree Protocol (RSTP) Dynamic DNS (DynDNS, TZO, no-ip.com, 3322.org) Network Address Translation (NAT), Port Address Translation (PAT) Port management Port mirroring Software-configurable network edge (DMZ) to any LAN IP address |
| IPv6 | Dual-stack IPv4 and IPv6 6-to-4 tunneling Multicast Listener Discovery (MLD) for IPv6 (RFC 2710) Stateless address auto-configuration DHCP v6 Server for IPv6 clients on LAN DHCP v6 client for WAN connectivity Internet Control Message Protocol (ICMP) v6 Static IPv6 routing Dynamic IPv6 routing with RIP for IPv6 (RIPng) IPv6 Rapid Deployment |
| Security | Stateful packet inspection (SPI) firewall Port forwarding and triggering Firewall access control lists and content filtering Denial-of-service (DoS) prevention MAC-based wireless access control Static URL blocking or keyword blocking Schedule-based Internet access policy HTTPS web access to the device manager Username/password complexity enforcement Self-signed SSL certificate Import and export certificate using Privacy-Enhanced Mail (PEM) format |
| VPN | 5 x IPsec client sessions using Cisco QuickVPN client 5 x PPTP client sessions for remote client access Triple Data Encryption Standard (3DES) Support for VPN pass-through of PPTP, L2TP, and IPsec 1 x IPsec site-to-site tunnel for branch office VPN support |
| Quality of Service (QoS) | 802.1p port-based priority on LAN port, application-based priority on WAN port 4 x Priority queue Differentiated Services Code Point (DSCP) support Class of Service (CoS) Bandwidth management for service prioritization |
| Management | Simple Network Management Protocol (SNMP) v3 Event logging: local, syslog, email alerts Firmware updates through a web browser Imported/exported configuration files in simple text format Simple browser-based configuration (HTTP/HTTPS) Bonjour and Universal Plug and Play (UPnP) Network Diagnostics: Ping, traceroute, and DNS lookup |
| Performance | NAT Throughput: 90 Mb/s Concurrent Sessions: 5000 VPN Throughput: 5 Mb/s |
| Wireless LAN | |
| Hardware | IEEE 802.11n standard-based access point with 802.11b/g compatibility Radio and Modulation Type: 802.11b: Direct sequence spread spectrum (DSSS) 802.11g/n: Orthogonal frequency division multiplexing (OFDM) 2 x Omnidirectional 1.8 dBi gain fixed external antenna Operating Channels: 11 in North America Automatic channel selection Transmit Power: 802.11b: 17 dBm ±1.5 dBm 802.11g: 15 dBm ±1.5 dBm 802.11n: 12.5 dBm ±1.5 dBm Receiver Sensitivity: -87 dBm at 11 Mb/s -71 dBm at 54 Mb/s -68 dBm at msc15, HT20 / -66dBm at mcs15, HT40° |
| Wireless Domain Service (WDS) | Wireless signals can be repeated by up to 3 compatible devices |
| WMM (Wi-Fi Multimedia) | WMM with QoS (802.11e), WMM power save (WMM-PS) |
| Active WLAN Clients | Up to 32 clients |
| Service Set Identifiers (SSIDs) | Up to 4 separate wireless networks |
| Wireless Isolation | Wireless isolation between clients |
| WLAN | Security: WPS ( Wi-Fi Protected Setup), Wired Equivalent Privacy (WEP), Wi-Fi Protected Access (WPA) personal and enterprise, WPA2 personal and enterprise |
| Interface | |
| WAN | 1 x 10/100 Mb/s Fast Ethernet WAN |
| LAN | 4 x 10/100 Mb/s Fast Ethernet LAN |
| WLAN | Built-in 802.11n wireless access point |
| LEDs | Power, WPS, WAN, Wireless, LAN (ports 1-4) |
| Switch | Power button (on/off) |
| Environmental | |
| Power | 12 V; 1.67 A |
| Certifications | FCC Class B CE IC UL cUL Wi-Fi C-Tick |
| Operating Temperature | 32 to 104°F (0 to 40°C) |
| Storage Temperature | -4 to 158°F (-20 to 70°C) |
| Operating Humidity | 10 to 85% non-condensing |
| Storage Humidity | 5 to 90% non-condensing |
| Mechanical | |
| Dimensions | 5.91 x 5.91 x 1.18" (15 x 15 x 3 cm) |
| Weight | 0.61 lb (0.3 kg) |
