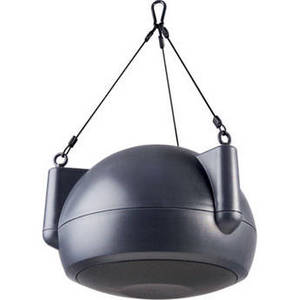

OPS1B Orbit Pendant Speaker (Dark Gray)
![]() |
From Bogen Communications
Availability: Item is currently available.
See more in Electronics
See more in Home Theater
Product Description
The OPS1B Orbit Pendant Speaker (Dark Gray) from Bogen is ideal for high ceiling and open space applications. This speaker uses a spiderless driver and one-piece metal alloy cone structure for exceptional articulation in both music and speech. The coaxial driver has wide dispersion of 140° with computer-matched venting system for full bass response. The OCS1 can be used with 16-ohms, 70V and 100V systems for flexibility. Enclosed in a low-resonance cabinet structure that employs an easy to use suspension system, which includes three-suspension cables with attached forged eye-bolts.
| System | |
| Speaker Design | Coaxial Pendant Speaker |
| Power Rating | 100W @ 16 ohms; 32W @ 70V/100V |
| Impedance | Low (16 ohms) / High (70V/100V) |
| Frequency Response | 45-19,000Hz |
| Sensitivity | 89.5dBspl |
| Crossover | Not specified by the manufacturer |
| Enclosure | Heavy-gauge plated steel Fire-rated (94VO) ABS |
| Shielded | Not specified by the manufacturer |
| Drivers | |
| Tweeter | 0.75" (20mm) Polycarbonate Dome |
| Midrange | None |
| Woofer | 6.5" MDT Metal-Alloy Cone (MLS Voice Coil Centering System) |
| General | |
| Connector Type | Terminal Strip |
| Dimensions | 15" (381mm) Diameter x 9.25" (234mm) Depth |
| Mounting Depth | Not applicable |
| Weight | 10 lbs (4.53kg) |
| Color | Dark Gray |
