EM 500 G3 Wireless UHF Diversity Receiver (Frequency A: 516 to 558 MHz)

EM 500 G3 Wireless UHF Diversity Receiver (Frequency A: 516 to 558 MHz)
From Sennheiser
Availability: Item is currently available.
See more in Electronics
See more in Home Theater


Product Description

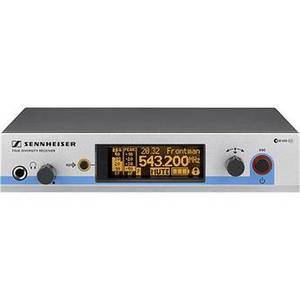

The Sennheiser EM 500 G3 Wireless Receiver is intended to be used with the Sennheiser G3 wireless transmitters. The receiver features true-diversity UHF reception, 42 MHz bandwidth, 1680 tunable frequencies, 32 compatible frequencies, and a comprehensive backlit display. With enhanced features that include automatic frequency scan, transmitter sync (via infrared), Ethernet port, and sturdy metal construction, the EM 500 is well suited for professional applications in theaters, clubs, town halls, houses of worship, DJ applications, and more.
Frequency Range A: 516 to 558 MHz
Frequency Response 25 Hz to 18 kHz, microphone
Compander HDX
Audio Connector Balanced XLR
Unbalanced 1/4" (6.3 mm) phone
Presets Max. 32
THD < 0.9 %
Signal-to-Noise Ratio > 115 dB(A)
Transmission/Receiving Frequency 1680
Switching Bandwidth 42 MHz
Peak Deviation +/- 48 kHz
Compliance ETS 300422, ETS 300445, CE , FCC
Antenna Connector 2 x BNC, 50 ohms
Audio Output Level XLR: +18 dBu max (balanced)
1/4" Jack: +12 dBu max (unbalanced)
Dimensions 7.95 x 8.35 x 1.69" (202 x 212 x 43 mm)
Weight 2.16 lb (980 g)
