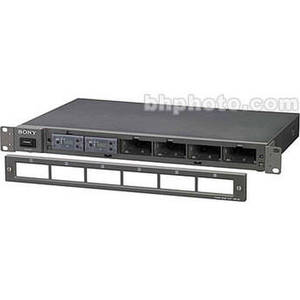

MB-X6 Modular Rack for Six WRU-806A and URX-M1 UHF Tuner Modules
![]() |
From Sony
Availability: Item is currently available.
See more in Electronics
See more in Home Theater
Product Description
The Sony MB-X6 UHF Tuner Base Unit features a modular design that conveniently accommodates up to six WRU-806A and URX-M1 tuner modules. Up to six transmitters may be used simultaneously with six tuner modules installed. The rear panel provides six XLR (mic/line selectable) outputs and a stereo mix output. The MB-X6 features a single 19" rack space design and operates on channels 30 through 69.
| Type of Receiver | Rack Mount Housing Designed to Accommodate 6 Individual (WRU-806) Receivers |
| RF Carrier Frequency Range | Not Specified by Manufacturer |
| Approx. Working Range | Not Specified by Manufacturer |
| Overall Frequency Response | 100 - 15 kHz |
| Signal-to-Noise Ratio | +60 dB (A weighted) |
| # Of Channels | 94 |
| Type of Outputs | 6 Individual Balanced XLR Outputs and 1 Balanced XLR 'Mix' Output (switchable mic/line) |
| Headphone Monitoring | No |
| Power Requirements | AC 120V |
| Battery Type/Approx. Life | Not Applicable, Unit Does NOT Operate on Batteries |
| Display | LCD Display Found on Each Optional WRU806A Wireless Receiver Modules |
| Mounting Options | Rack/Table Top Mount |
| Antenna Type | Passive Antennas with BNC-R Type Connectors |
| Dimensions (WxHxD) | 18.97 x 1.73 x 11.22" (482 x 44 x 285mm) |
| Weight | 12 lbs 2 oz (5.5 kg) |
