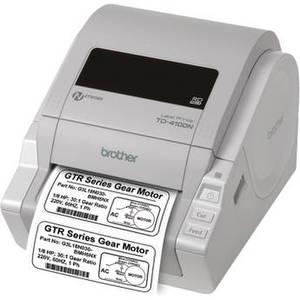

TD-4100N Desktop Bar Code Network Printer
 |
From Brother
Availability: Item is currently available.
See more in Electronics
See more in Camera & Photo
See more in Printers & Scanners
Product Description
The Brother TD-4100N Desktop Bar Code Network Printer is a cost-effective way to print out labels, receipts, and tags all at your desktop. This GDI printer is compatible with Windows operating systems, including Windows 7, and comes packaged with Brother's PT-Editor software for increased customization options. The TD-4100N can also be linked to a Microsoft Excel or Access database file or SQL server, and is also compatible with third party Windows-based software apps. In addition, the TD-4100N features Ethernet connectivity for expanded, web-based, capabilities. Along with numerous design options, the TD-4100N also features a fast print speed of 4.3 inches per second, an automatic cutter, and toll free customer support.
| Color | Grey/white |
| Operation Modes | PC connected: dumb printer, template Connected to host Peripheral: serial interface |
| Status Indicator | LED (3 colors) |
| Cutter | Automatic (built-in) |
| Cutter Life | Approximately 300,000 cuts (liner only) Approximately 150,000 cuts (label and liner) |
| Print Speed | 1.24 ips (109mm/sec) |
| Printing Method | Direct thermal |
| Sensor | Fixed transmissivelocation: edge |
| Media Type | Drop-in roll or fanfold (rear slot) continuous label or paper, die cut labels, tag stock |
| Tape Sizes | Maximum roll size - outside diameter: 4" (101.6mm) |
| Maximum Tape Width | With adhesive: 0.003-0.007" (0.076-0.178mm)Without adhesive: 0.003"-0.006" (0.076-0.153mm) |
| Maximum Print Size | Width: 3.88 x 1" (98.6 x 25.4mm)Length: 1" (25.4mm) |
| Control Panel | On/off, feed, cut |
| Maximum Resolution | 300 x 300 dpi (12 x 12 dots/mm) |
| Fonts | ESC P: Helsinki, Letter Gothic TemplateBitmap and outline: Helsinki, Brussels, Letter Gothic |
| Font Styles | ESC P: 21, 28, 44, 56, 88, 120 dots Template (bitmap): 21, 28 dots Template (outline): 35 - 380 dots (20 sizes) |
| Printer Emulations | Raster, ESC P, Template |
| Memory | 2MB |
| Memory for Transferred Data | Up to 99 template files |
| Symbols for Windows | 1379 |
| Mirror Printing | Yes |
| Vertical Printing | Yes |
| Rotate Printing | Yes |
| Date/Time Stamp | Through PC |
| Multiple Copies | Up to 9,999 Copies (PT-Editor) |
| Bar-Code Types | Linear: Code39, ITF (I-2/5), UPC-A, UPC-E, EAN8, EAN13, Codabar (NW-7), Code128, UCC/EAN128, Postnet, Laser Bar Code, ISBN-2, ISBN-5, GS1 DataBar (RSS) 2-Dimensional: PDF417, QR Code, Micro QR Code, Data Matrix, Maxicode |
| Microsoft Word Add-In | Office 2000/2003/2007 |
| Database File Compatibility | .csv, .txt, .mdb, .xls and Microsoft SQL server |
| Software | BRadmin Light 1.14, P-touch PT-Editor 5.0, Transfer Manager 2.1, Transfer Express, Library 2.1 |
| Power Switch | Mechanical |
| Networking | 10/100 print server built-in |
| Interface | USB (1.1 or 2.0), Serial (RS-232C), Ethernet 10/100 Base-TX |
| Compatibility | PC |
| Operating System | Windows 2000 Professional/XP/7, Windows Vista |
| Power Requirements | 120VAC, 60Hz, 1.8AEnergy Star compliant |
| Dimensions | 6.8 x 9.0 x 6.2" / 173 x 229 x 158mm |
| Weight | 4 lb / 1.85kgWithout RD roll |
